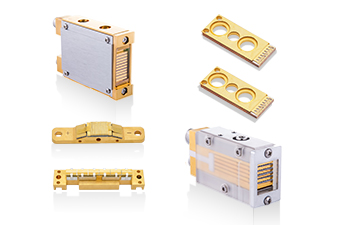

Diode Laser Packaged Bars and Arrays

Diode Laser Packaged Bars and Arrays

LDA series high power packaged bars provide OEM customers with scalable power up to kilowatts for pumping, industrial, medical and applications. The packaged laser bars can be configured for enhanced brightness through stacking, scaled linearly or vertically for optimized light and material integration. LDA series offer

Wavelengths at 808nm to 1100nm range

Modular and Compact design for ease of integration

Up to 100W CW and 300W QCW laser diode bars for high brightness

Packaged 10mm laser diode bar, various standard bar configurations (custom bar configurations available on request)

Packaged Bars	Center Wavelength	Output Power	Operation Mode	Cooling	Downloads
LDAC1-0808-020W	808nm	20W	CW	Conduction-cooled	Conduction-cooled Packaged Bars（CW）
LDAC1-0808-040W	808nm	40W	CW
LDAC1-0808-060W	808nm	60W	CW
LDAC1-09xx-060W	9xxnm	60W	CW
LDAC1-1064-040W	1064nm	40W	CW
LDAC1-0808-040W	808nm	40W	CW	Microchannel-cooled	Micro-channel Water-cooled Packaged Bars（CW）
LDAC1-0808-060W	808nm	60W	CW
LDAC1-0808-100W	808nm	100W	CW
LDAC1-09xx-060W	9xxnm	60W	CW
LDAC1-1064-040W	1064nm	40W	CW
LDAQ1-0808-100W	808nm	100W	QCW	Conduction-cooled	808nm Conduction-cooled Packaged Bars（QCW）
LDAQ1-0808-200W	808nm	200W	QCW
LDAQ1-0808-300W	808nm	300W	QCW

Vertical Arrays	Center Wavelength	Power per bar	Operation Mode	Cooling	Downloads
LDAC2-0808-xxx	808nm	40-100W	CW	Microchannel-cooled	Micro-channel Water-cooled Vertical Arrays（CW）
LDAC2-09xx-xxx	9xxnm	40-100W	CW
LDAC2-1064-040W	1064nm	40W	CW
LDAQ2-0808-xxx	808nm	100-300W	QCW	Conduction-cooled	Conduction-cooled Vertical Arrays（QCW）
LDAQ2-0940-xxx	940nm	100-200W	QCW	Conduction-cooled	Conduction-cooled Vertical Arrays（QCW）

Horizontal Arrays	Center Wavelength	Power per bar	Operation Mode	Cooling	Downloads
LDAC3-0808-xxx	808nm	40-100W	CW	Microchannel-cooled	Micro-channel Water-cooled Horizontal Arrays（CW）
LDAC3-09xx-xxx	9xxnm	40-100W	CW
LDAC3-1064-040W	1064nm	40W	CW
LDAC3-0808-xxx	808nm	40-100W	CW	Macrochannel-cooled	Macro-channel Water-cooled Horizontal Arrays（CW）
LDAC3-09xx-xxx	9xxnm	40-100W	CW
LDAC3-1064-040W	1064nm	40W	CW
LDAQ3-0808-xxx	808nm	100-300W	QCW	Macrochannel-cooled	Macro-channel Water-cooled Horizontal Arrays（QCW）
LDAQ3-0940-xxx	940nm	100-200W	QCW	Macrochannel-cooled	Macro-channel Water-cooled Horizontal Arrays（QCW）

Please know that 9xxnm center wavelength includes 915nm/940nm/980nm.

Please contact us to discuss your unique requirements.
