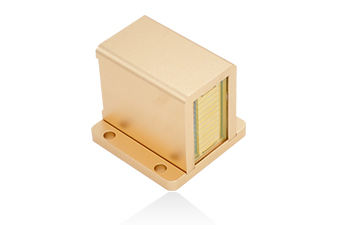

Diode Laser Arrays for Hair Removal

The vertical arrays specially designed for hair removal application, can stack up to 10 packaged laser bars to form a high power diode laser assembly. Each of these laser bars individually provides up to 100watts in CW mode. The small gaps between the laser bars make the module obtain maximum brilliance from the arrays, enabling the module to work with high efficiency

Power up to 1000W

Compact designs

Reliable package with hard solder

Diode Laser Arrays for Hair Removal
Parameters	Unit	LDAQ2-0808-
Operation Mode	-	QCW
Center Wavelength	nm	808 ± 10	808 ± 10	808 ± 10	808 ± 10
Output Power	W	300	500	800	1000
Bar Numbers	-	5/ 6	10	8	10
Operating Current	A	≤50	≤50	≤100	≤100
Operating Voltage	V/bar	≤2	≤2	≤2	≤2
Pulse Width	ms	≤400	≤400	≤200	≤200
Duty Cycle	%	≤40	≤40	≤20	≤20
Bar pitch	mm	2	2	2.8	2.8
Emitting Area	mm×mm	10×11	10×19.5	10x20	10x25.5
Operating Temp.	℃	15～35
Storage Temp.	℃	-10～50
Flow Rate	L/min	>4
Downloads	-	pdf

Please contact HTOE to discuss your unique requirements.
